ch14-Heroes-part2-react-router

We are back in the Heroes component, and this time we have routing capabilities. On initial render, Heroes displays its child HeroList component. We need it to be able to display HeroDetail when clicking the + button of the ListHeader. Then we need HeroList displayed again when clicking the refresh button of the ListHeader. Cancel button should go back from HeroDetail to HeroList. Create a new branch feat/Heroes-part2

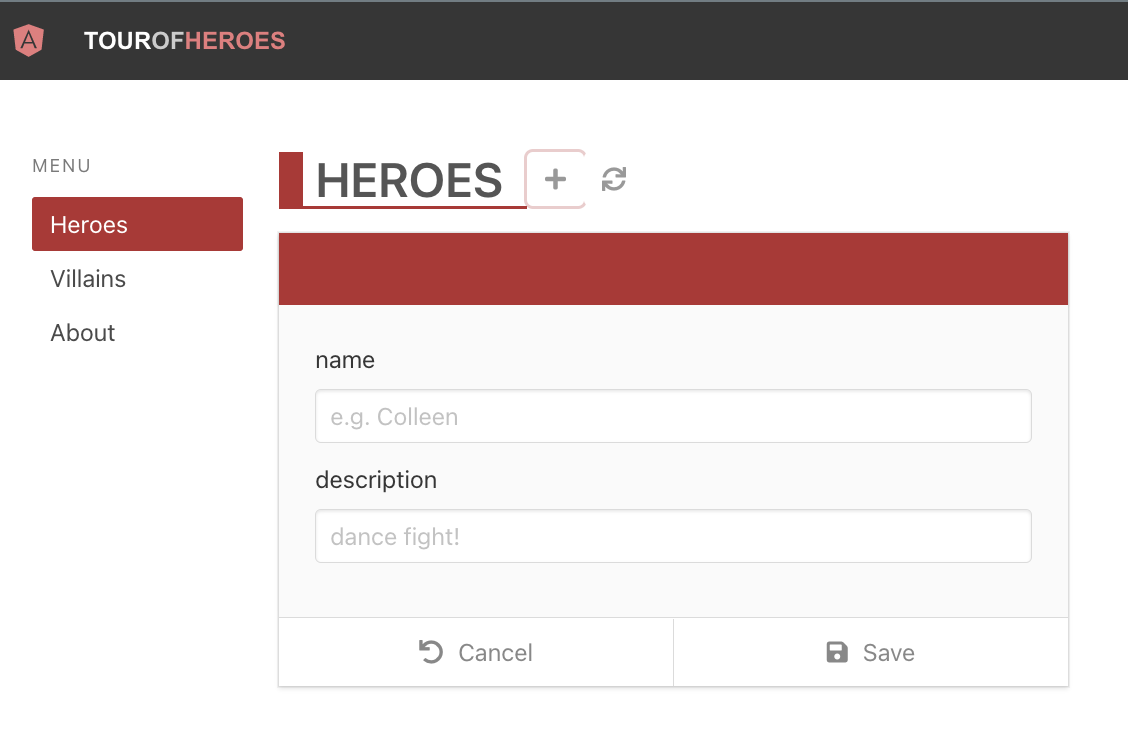

HeroesPart2-initial
For the time being, instead of switching between HeroList and HerdoDetail depending on the route, we can display them both together. Let's write the test (Red 1).
// src/heroes/Heroes.cy.tsx
import Heroes from "./Heroes";
import { BrowserRouter } from "react-router-dom";
import "../styles.scss";
describe("Heroes", () => {
it("should handle hero add and refresh", () => {
cy.window()
.its("console")
.then((console) => cy.spy(console, "log").as("log"));
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("list-header");
cy.getByCy("add-button").click();
cy.get("@log").should("have.been.calledWith", "handleAdd");
cy.getByCy("refresh-button").click();
cy.get("@log").should("have.been.calledWith", "handleRefresh");
});
it.only("should display hero list on render", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("hero-list");
cy.getByCy("hero-detail");
});
const invokeHeroDelete = () => {
cy.getByCy("delete-button").first().click();
cy.getByCy("modal-yes-no").should("be.visible");
};
it("should go through the modal flow", () => {
cy.window()
.its("console")
.then((console) => cy.spy(console, "log").as("log"));
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("modal-yes-no").should("not.exist");
cy.log("do not delete flow");
invokeHeroDelete();
cy.getByCy("button-no").click();
cy.getByCy("modal-yes-no").should("not.exist");
cy.log("delete flow");
invokeHeroDelete();
cy.getByCy("button-yes").click();
cy.getByCy("modal-yes-no").should("not.exist");
cy.get("@log").should("have.been.calledWith", "handleDeleteFromModal");
});
});
To pass the test, we add the HeroDetail near HeroList. It has a prop hero, which can temporarily be index 0 of the heroes array (Green 1).
// src/heroes/Heroes.tsx
import ListHeader from "components/ListHeader";
import ModalYesNo from "components/ModalYesNo";
import HeroList from "./HeroList";
import heroes from "./heroes.json";
import { useState } from "react";
import HeroDetail from "./HeroDetail";
export default function Heroes() {
const [showModal, setShowModal] = useState<boolean>(false);
const addNewHero = () => console.log("handleAdd");
const handleRefresh = () => console.log("handleRefresh");
const handleCloseModal = () => {
setShowModal(false);
};
const handleDeleteHero = () => {
setShowModal(true);
};
const handleDeleteFromModal = () => {
setShowModal(false);
console.log("handleDeleteFromModal");
};
return (
<div data-cy="heroes">
<ListHeader
title="Heroes"
handleAdd={addNewHero}
handleRefresh={handleRefresh}
/>
<div>
<div>
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
<HeroDetail hero={heroes[0]} />
</div>
</div>
{showModal && (
<ModalYesNo
message="Would you like to delete the hero?"
onNo={handleCloseModal}
onYes={handleDeleteFromModal}
/>
)}
</div>
);
}

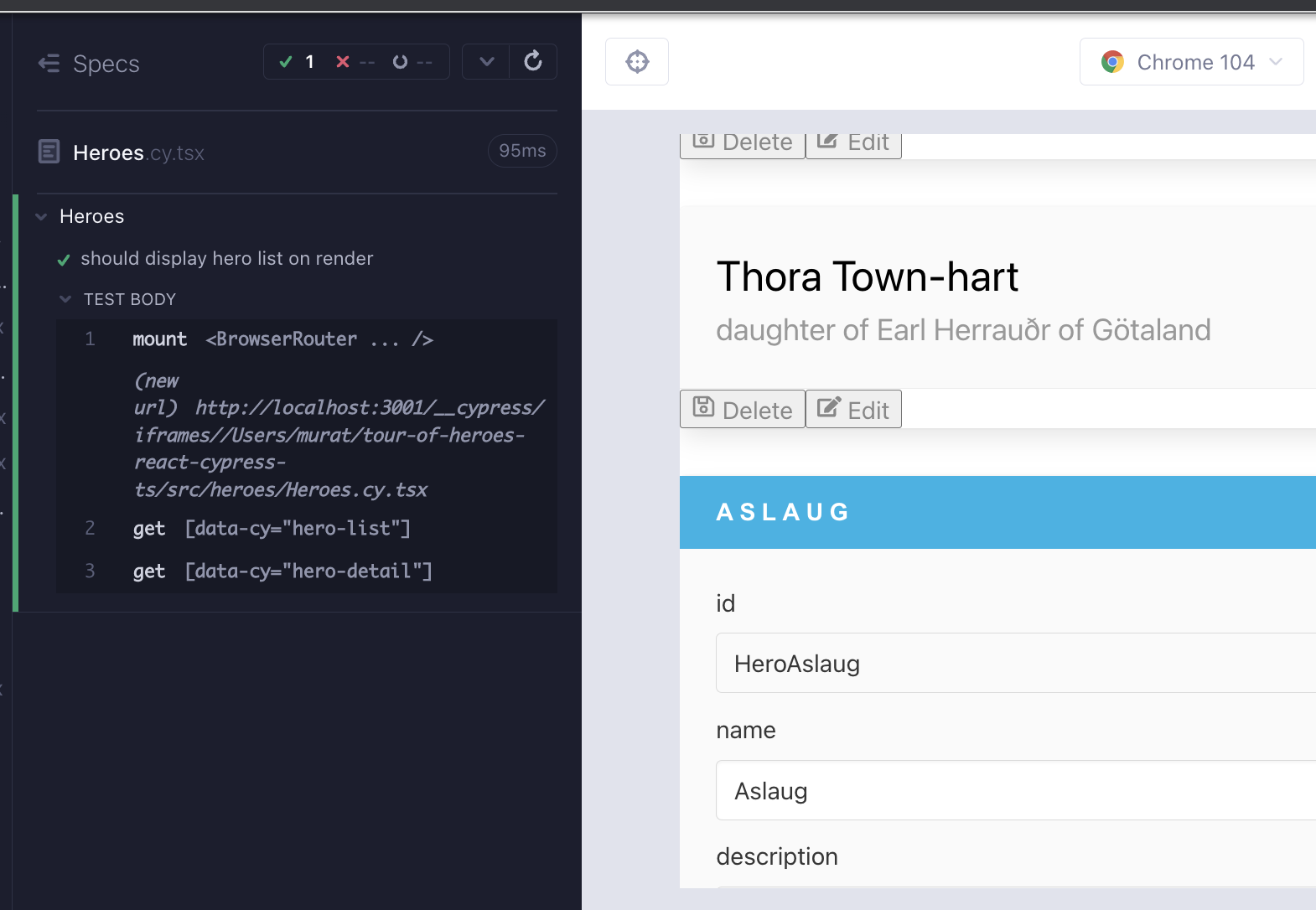

HeroesPart2-Green1
We want to switch the displayed component when the route changes. What drives this in React is first the route, then the child component, as we saw in the react-router chapter. In a component test, on the initial mount there is no url, but when clicking a link the route changes. We can drive the test with the refresh and + buttons to check the route. We will use cy.location in this test to check for the pathname. Here is an excerpt from Gleb Bahmutov's Cypress tips:
cy.visit("https://example.cypress.io/commands/location?search=value#top");
// yields a specific part of the location
cy.location("protocol").should("equal", "https:");
cy.location("hostname").should("equal", "example.cypress.io");
cy.location("pathname").should("equal", "/commands/location");
cy.location("search").should("equal", "?search=value");
cy.location("hash").should("equal", "#top");
For brevity, we will keep the test code focused on the .only section. We write a test that checks that when clicking the refresh button the path becomes /heroes (Red 2).
// src/heroes/Heroes.cy.tsx
it.only("should display hero list on render", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("hero-list");
cy.getByCy("hero-detail");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
});
The test fails, but in the console we see handleRefresh log. Instead of the log, we can have something that changes the url. React-router's useNavigate can be used for this purpose which lets us programmatically navigate to any url (Green 2).
// src/heroes/Heroes.tsx
import { useNavigate } from "react-router-dom";
import ListHeader from "components/ListHeader";
import ModalYesNo from "components/ModalYesNo";
import HeroList from "./HeroList";
import heroes from "./heroes.json";
import { useState } from "react";
import HeroDetail from "./HeroDetail";
export default function Heroes() {
const [showModal, setShowModal] = useState<boolean>(false);
const addNewHero = () => console.log("handleAdd");
const navigate = useNavigate();
const handleRefresh = () => navigate("/heroes");
const handleCloseModal = () => {
setShowModal(false);
};
const handleDeleteHero = () => {
setShowModal(true);
};
const handleDeleteFromModal = () => {
setShowModal(false);
console.log("handleDeleteFromModal");
};
return (
<div data-cy="heroes">
<ListHeader
title="Heroes"
handleAdd={addNewHero}
handleRefresh={handleRefresh}
/>
<div>
<div>
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
<HeroDetail hero={heroes[0]} />
</div>
</div>
{showModal && (
<ModalYesNo
message="Would you like to delete the hero?"
onNo={handleCloseModal}
onYes={handleDeleteFromModal}
/>
)}
</div>
);
}
We can now try another test that clicks on the add button and checks the url. We wish for that path to be add-hero (Red 3).
// src/heroes/Heroes.cy.tsx
it.only("should display hero list on render", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("hero-list");
cy.getByCy("hero-detail");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
cy.getByCy("add-button").click();
cy.location("pathname").should("eq", "/heroes/add-hero");
});
Similar to the previous cycle, we see handleAdd being console.logged. We can utilize useNavigate once more (Green 3).
// src/heroes/Heroes.tsx
import { useNavigate } from "react-router-dom";
import ListHeader from "components/ListHeader";
import ModalYesNo from "components/ModalYesNo";
import HeroList from "./HeroList";
import heroes from "./heroes.json";
import { useState } from "react";
import HeroDetail from "./HeroDetail";
export default function Heroes() {
const [showModal, setShowModal] = useState<boolean>(false);
const navigate = useNavigate();
const addNewHero = () => navigate("/heroes/add-hero");
const handleRefresh = () => navigate("/heroes");
const handleCloseModal = () => {
setShowModal(false);
};
const handleDeleteHero = () => {
setShowModal(true);
};
const handleDeleteFromModal = () => {
setShowModal(false);
console.log("handleDeleteFromModal");
};
return (
<div data-cy="heroes">
<ListHeader
title="Heroes"
handleAdd={addNewHero}
handleRefresh={handleRefresh}
/>
<div>
<div>
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
<HeroDetail hero={heroes[0]} />
</div>
</div>
{showModal && (
<ModalYesNo
message="Would you like to delete the hero?"
onNo={handleCloseModal}
onYes={handleDeleteFromModal}
/>
)}
</div>
);
}
Our pathnames are looking good, but what we need is rendering different components based on the route.

react-router descendant routes

  1. 1.
    On initial render we want to see HeroList.
  2. 2.
    On clicking add button of ListHeader, we want to see HeroDetail.
  3. 3.
    On clicking refresh button of ListHeader, we want to see HeroList again, so on and so forth.
We need some React Router v6 knowledge here. Remember our react-router setup in the top app component. We are concerned about /heroes route here. When the pathname is just /heroes we want to display HeroesList, when it is /heroes/addd-hero we want to display HeroDetail. That means /heroes will need a descendent route.
// src/App.tsx
import About from "About";
import HeaderBar from "components/HeaderBar";
import NavBar from "components/NavBar";
import NotFound from "components/NotFound";
import Heroes from "heroes/Heroes";
import { BrowserRouter, Routes, Route, Navigate } from "react-router-dom";
import "./styles.scss";
function App() {
return (
<BrowserRouter>
<HeaderBar />
<div className="section columns">
<NavBar />
<main className="column">
<Routes>
<Route path="/" element={<Navigate replace to="/heroes" />} />
{/* WE ARE CONCERNED ABOUT HEROES ROUTE */}
<Route path="/heroes" element={<Heroes />} />
<Route path="/about" element={<About />} />
<Route path="*" element={<NotFound />} />
</Routes>
</main>
</div>
</BrowserRouter>
);
}
export default App;
In react-router v6 we need a trailing * when there is another <Routes> somewhere in that route's descendant tree. In that case, the descendant <Routes> will match the portion of the pathname that remains. We need to modify our App.tsx file for the path="/heroes" prop to path="heroes/*". This will let the descendant Routes component we will be adding to take over the route control.
// src/App.tsx
import About from "About";
import HeaderBar from "components/HeaderBar";
import NavBar from "components/NavBar";
import NotFound from "components/NotFound";
import Heroes from "heroes/Heroes";
import { BrowserRouter, Routes, Route, Navigate } from "react-router-dom";
import "./styles.scss";
function App() {
return (
<BrowserRouter>
<HeaderBar />
<div className="section columns">
<NavBar />
<main className="column">
<Routes>
<Route path="/" element={<Navigate replace to="/heroes" />} />
<Route path="/heroes/*" element={<Heroes />} />
<Route path="/about" element={<About />} />
<Route path="*" element={<NotFound />} />
</Routes>
</main>
</div>
</BrowserRouter>
);
}
export default App;
In the Heroes component what we need is to go from this:
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
<HeroDetail hero={heroes[0]} />
To this:
<Routes>
<Route
path=""
element={<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />}
/>
<Route path="/add-hero" element={<HeroDetail />} />
</Routes>
If the route is /heroes, we display the HeroList.
If the route is /heroes/add-hero, we display the HeroDetail.
// src/heroes/Heroes.tsx
import { Route, Routes, useNavigate } from "react-router-dom";
import ListHeader from "components/ListHeader";
import ModalYesNo from "components/ModalYesNo";
import HeroList from "./HeroList";
import heroes from "./heroes.json";
import { useState } from "react";
import HeroDetail from "./HeroDetail";
export default function Heroes() {
const [showModal, setShowModal] = useState<boolean>(false);
const navigate = useNavigate();
const addNewHero = () => navigate("/heroes/add-hero");
const handleRefresh = () => navigate("/heroes");
const handleCloseModal = () => {
setShowModal(false);
};
const handleDeleteHero = () => {
setShowModal(true);
};
const handleDeleteFromModal = () => {
setShowModal(false);
console.log("handleDeleteFromModal");
};
return (
<div data-cy="heroes">
<ListHeader
title="Heroes"
handleAdd={addNewHero}
handleRefresh={handleRefresh}
/>
<div>
<div>
<Routes>
<Route
path=""
element={
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
}
/>
<Route path="/add-hero" element={<HeroDetail />} />
</Routes>
</div>
</div>
{showModal && (
<ModalYesNo
message="Would you like to delete the hero?"
onNo={handleCloseModal}
onYes={handleDeleteFromModal}
/>
)}
</div>
);
}
With that setup we have 2 failures; our test fails because it doesn't render anything, TS gives an error because HeroDetail wants to have a hero prop with a defined hero (Red 4).
We had setup the HeroDetail to be used in two conditions; render the heroId field if heroId exists or not. Therefore we should be able to use the component for adding a new hero. For now we can make the prop optional, and have a default hero object with empty id, name and description properties. Here is how HeroDetail should look for the time being:
// src/heroes/HeroDetail.tsx
import InputDetail from "components/InputDetail";
import { useState, ChangeEvent } from "react";
import ButtonFooter from "components/ButtonFooter";
import { FaUndo, FaRegSave } from "react-icons/fa";
export type Hero = {
id: string;
name: string;
description: string;
};
type HeroDetailProps = {
hero?: Hero;
};
export default function HeroDetail({
hero: initHero = {
id: "",
name: "",
description: "",
},
}: HeroDetailProps) {
const [hero, setHero] = useState<Hero>({ ...initHero });
const handleCancel = () => console.log("handleCancel");
const updateHero = () => console.log("updateHero");
const createHero = () => console.log("createHero");
const handleSave = () => {
console.log("handleSave");
return hero.name ? updateHero() : createHero();
};
const handleNameChange = (e: ChangeEvent<HTMLInputElement>) => {
console.log("handleNameChange");
setHero({ ...hero, name: e.target.value });
};
const handleDescriptionChange = (e: ChangeEvent<HTMLInputElement>) => {
console.log("handleDescriptionChange");
setHero({ ...hero, description: e.target.value });
};
return (
<div data-cy="hero-detail" className="card edit-detail">
<header className="card-header">
<p className="card-header-title">{hero.name}</p>
&nbsp;
</header>
<div className="card-content">
<div className="content">
{hero.id && (
<InputDetail
name={"id"}
value={hero.id}
readOnly={true}
></InputDetail>
)}
<InputDetail
name={"name"}
value={hero.name}
placeholder="e.g. Colleen"
onChange={handleNameChange}
></InputDetail>
<InputDetail
name={"description"}
value={hero.description}
placeholder="e.g. dance fight!"
onChange={handleDescriptionChange}
></InputDetail>
</div>
</div>
<footer className="card-footer">
<ButtonFooter
label="Cancel"
IconClass={FaUndo}
onClick={handleCancel}
/>
<ButtonFooter label="Save" IconClass={FaRegSave} onClick={handleSave} />
</footer>
</div>
);
}
It is great that HeroDetail.cy.tsx passes after that change. Our only concern is that we broke our Heroes test.
// src/heroes/Heroes.cy.tsx
it.only("should display hero list on render", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("hero-list").should("be.visible");
cy.getByCy("add-button").click();
cy.location("pathname").should("eq", "/heroes/add-hero");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
});
HeroesPart2-Red4
We recall from react-router chapter that a component test has no idea about routes, and unless we click navigate in the test, the route is uncertain. This also justifies a test for an invalid heroes route, for example heroes/foo42. When such is the case, we are looking for a heroId that does not exist, we would like to view the HeroList. We need to add a new Route element that renders the HeroList with path being *.
// src/heroes/Heroes.tsx
import { useNavigate, Routes, Route, Navigate } from "react-router-dom";
import ListHeader from "components/ListHeader";
import ModalYesNo from "components/ModalYesNo";
import HeroList from "./HeroList";
import heroes from "./heroes.json";
import { useState } from "react";
import HeroDetail from "./HeroDetail";
export default function Heroes() {
const [showModal, setShowModal] = useState<boolean>(false);
const navigate = useNavigate();
const addNewHero = () => navigate("/heroes/add-hero");
const handleRefresh = () => navigate("/heroes");
const handleCloseModal = () => {
setShowModal(false);
};
const handleDeleteHero = () => {
setShowModal(true);
};
const handleDeleteFromModal = () => {
setShowModal(false);
console.log("handleDeleteFromModal");
};
return (
<div data-cy="heroes">
<ListHeader
title="Heroes"
handleAdd={addNewHero}
handleRefresh={handleRefresh}
/>
<div>
<div>
<Routes>
<Route
path=""
element={
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
}
/>
<Route path="/add-hero" element={<HeroDetail />} />
<Route
path="*"
element={
<HeroList heroes={heroes} handleDeleteHero={handleDeleteHero} />
}
/>
</Routes>
</div>
</div>
{showModal && (
<ModalYesNo
message="Would you like to delete the hero?"
onNo={handleCloseModal}
onYes={handleDeleteFromModal}
/>
)}
</div>
);
}
Because the url is uncertain on component mount in a test, we also need to change the url verification to checking that HeroList renders (Green 4).
// src/heroes/Heroes.cy.tsx
it.only("should display the hero list on render", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("hero-list").should("be.visible");
cy.getByCy("add-button").click();
cy.location("pathname").should("eq", "/heroes/add-hero");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
});
That change makes the test work, but the suite is not making cohesive sense between the first two it blocks. The first test that was checking for the console.log on handleAdd and handleRefresh is not valid, nor needed anymore, since we are changing the route with useNavigate. We could spy on useNavigate, but that is implementation detail and we are already checking that the url is changing; we are testing things in a better way, at a higher level, without extra cost. Here is the refactor to the test (Refactor 4):
// src/heroes/Heroes.cy.tsx
import Heroes from "./Heroes";
import { BrowserRouter } from "react-router-dom";
import "../styles.scss";
describe("Heroes", () => {
it("should display the hero list on render, and go through hero add & refresh flow", () => {
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("list-header").should("be.visible");
cy.getByCy("hero-list").should("be.visible");
cy.getByCy("add-button").click();
cy.location("pathname").should("eq", "/heroes/add-hero");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
});
const invokeHeroDelete = () => {
cy.getByCy("delete-button").first().click();
cy.getByCy("modal-yes-no").should("be.visible");
};
it("should go through the modal flow", () => {
cy.window()
.its("console")
.then((console) => cy.spy(console, "log").as("log"));
cy.mount(
<BrowserRouter>
<Heroes />
</BrowserRouter>
);
cy.getByCy("modal-yes-no").should("not.exist");
cy.log("do not delete flow");
invokeHeroDelete();
cy.getByCy("button-no").click();
cy.getByCy("modal-yes-no").should("not.exist");
cy.log("delete flow");
invokeHeroDelete();
cy.getByCy("button-yes").click();
cy.getByCy("modal-yes-no").should("not.exist");
cy.get("@log").should("have.been.calledWith", "handleDeleteFromModal");
});
});
In the react-router chapter, we concluded that the best way to test routing is with e2e tests. We are testing the pathnames in the component here, but we cannot test that the right child component is being rendered when the route changes. We can start the e2e test covering a similar flow, which will also serve as a larger test that covers the CRUD hero flow in the future. When there is functionality that we cannot test, or cannot test confidently at a lower level, we move up in the test pyramid, in this case from a component test to an e2e test. Start the e2e runner with yarn cy:open-e2e. Create a new e2e test cypress/e2e/create-hero.cy.ts.
// cypress/e2e/create-hero.cy.ts
describe("Create hero", () => {
beforeEach(() => cy.visit("/"));
it("should go through the refresh flow", () => {
cy.location("pathname").should("eq", "/heroes");
cy.getByCy("add-button").click();
cy.location("pathname").should("eq", "/heroes/add-hero");
cy.getByCy("hero-detail").should("be.visible");
cy.getByCy("input-detail-id").should("not.exist");
cy.getByCy("refresh-button").click();
cy.location("pathname").should("eq", "/heroes");
cy.getByCy("hero-list").should("be.visible");
});
});
This test enables us to check that HeroDetail renders on add, and that it renders without the id field since this is a new hero. The refresh create hero flow gives us a new idea; whether the backend is operational or not, the cancel flow for hero edit or add should also work. After having reached a certain milestone, e2e tests, or simply ad-hoc usage of the app can often give us new ideas for features. This is the scientific method after all, we know more and now we can try for more, and that in essence captures the original mindset behind TDD, as well as agile.
Let's add a failing e2e test for edit hero cancel flow (Red 5). Create a file cypress/e2e/edit-hero.cy.ts. It starts similarly to the add flow, but instead clicks the Edit button and expects to be in a relevant route.
// cypress/e2e/edit-hero.cy.ts
